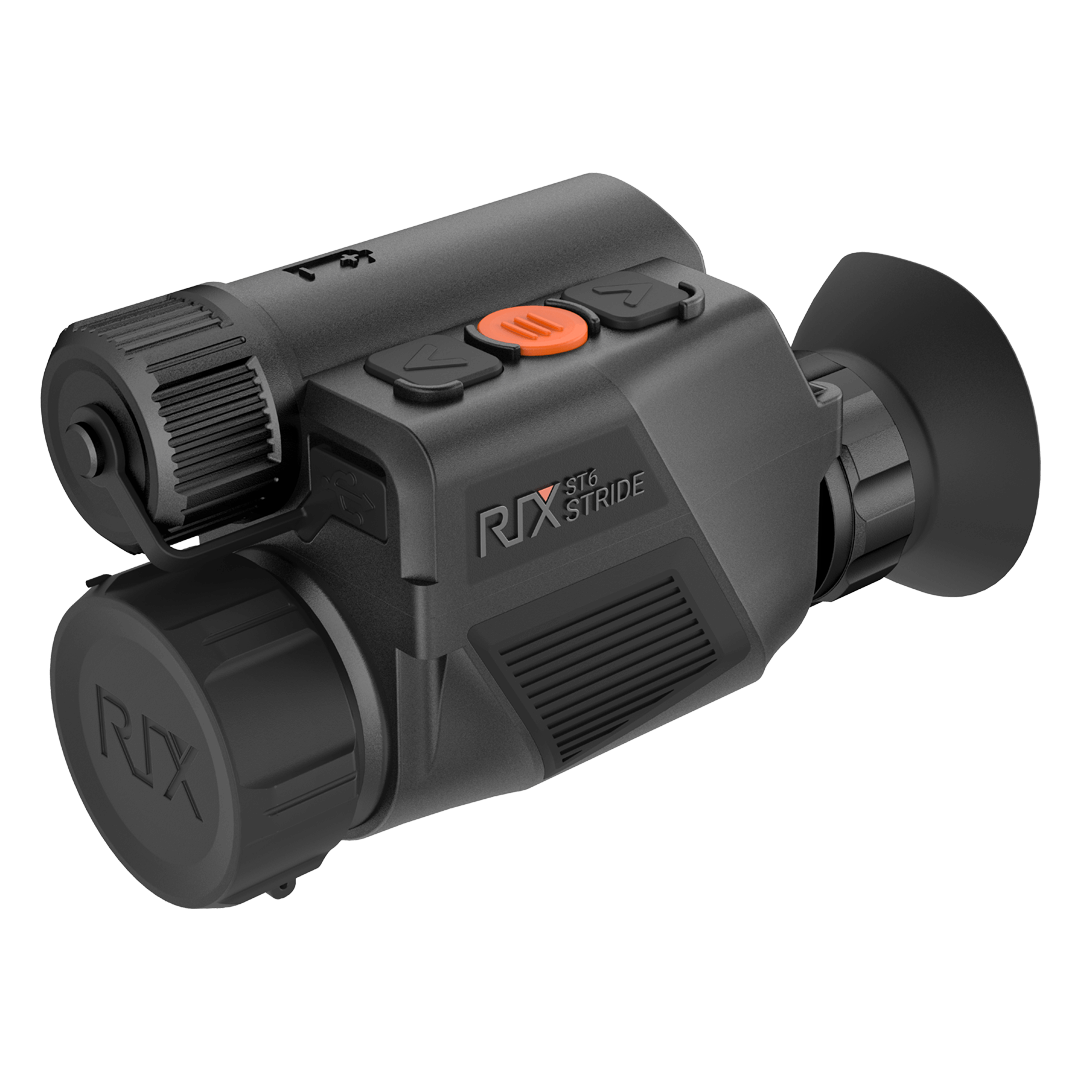

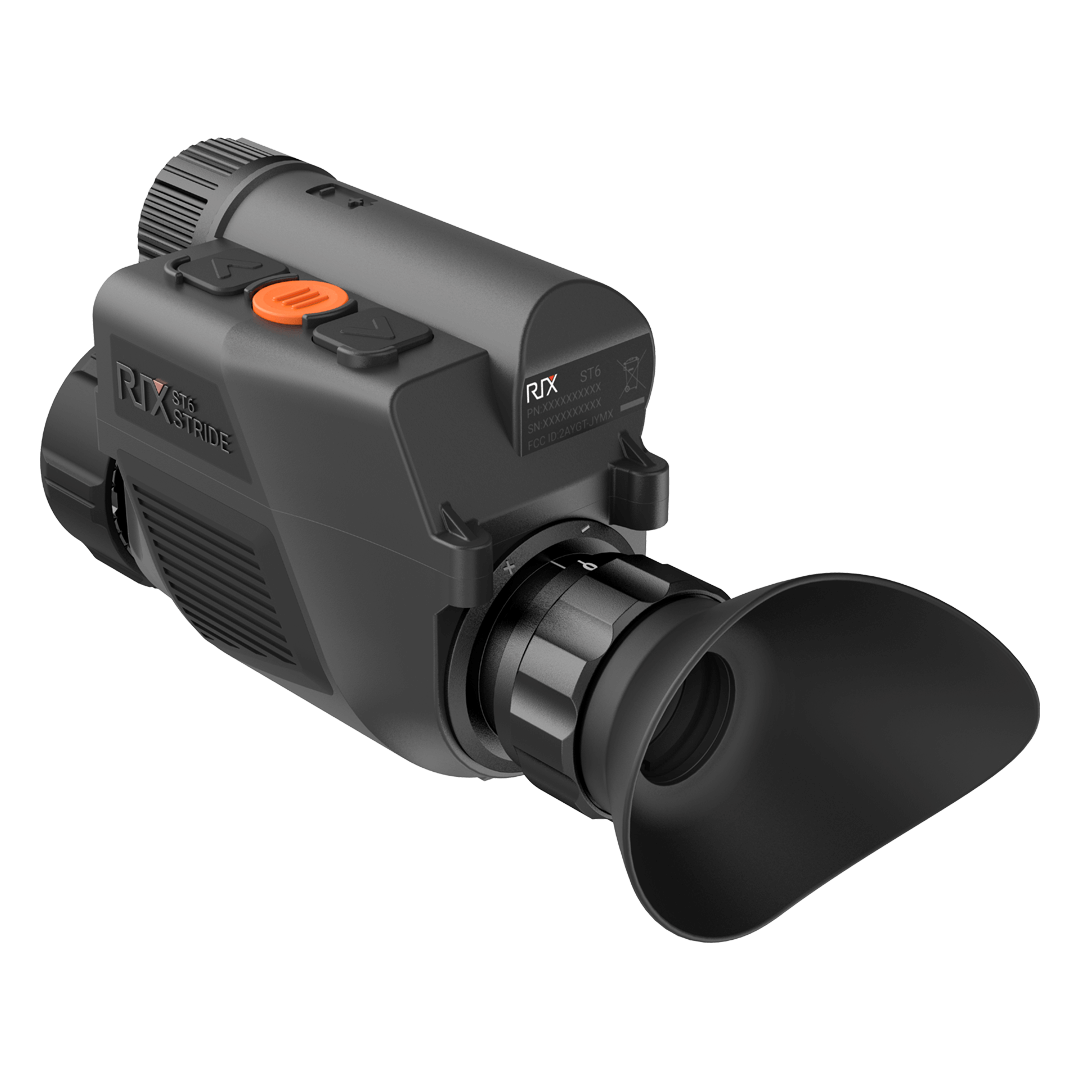

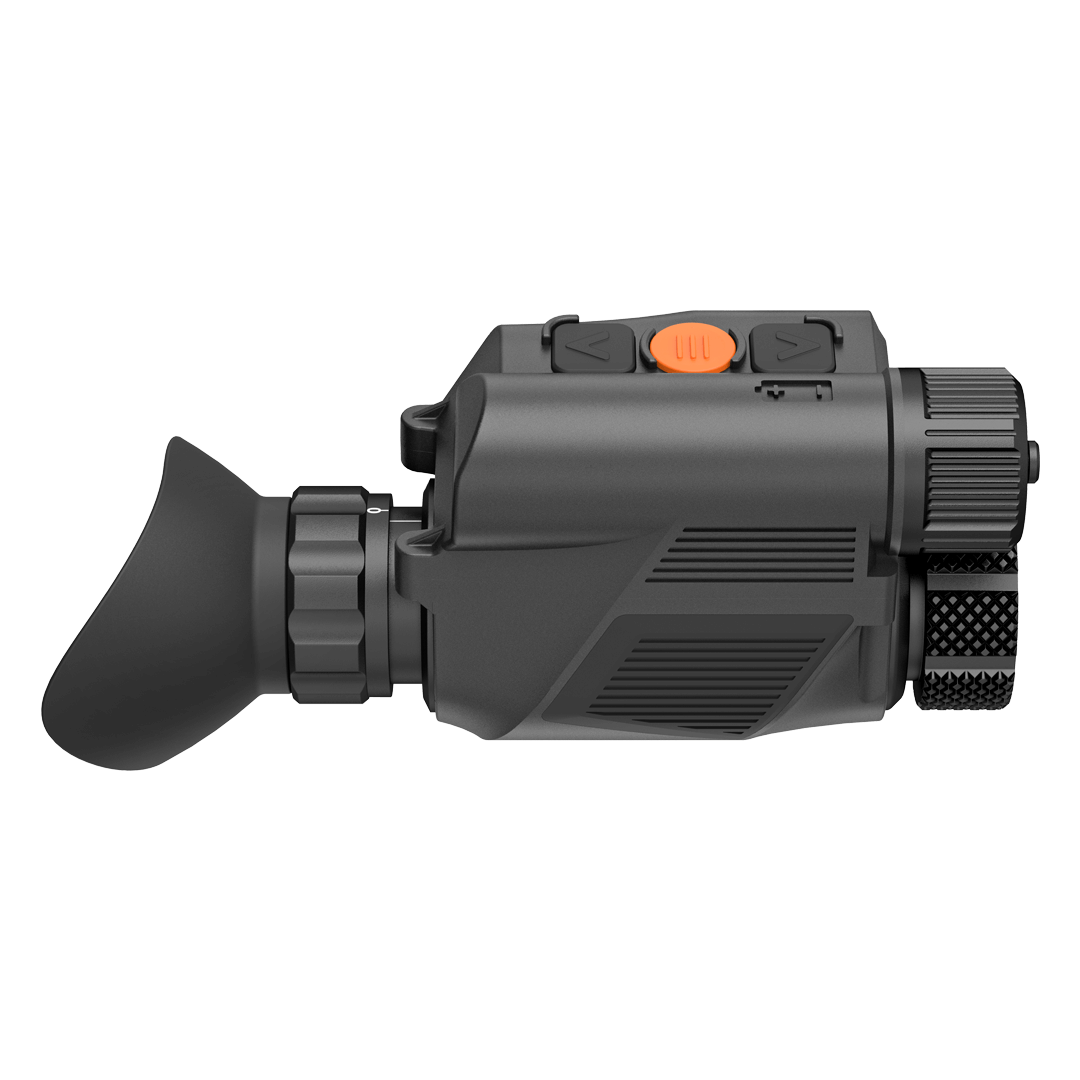

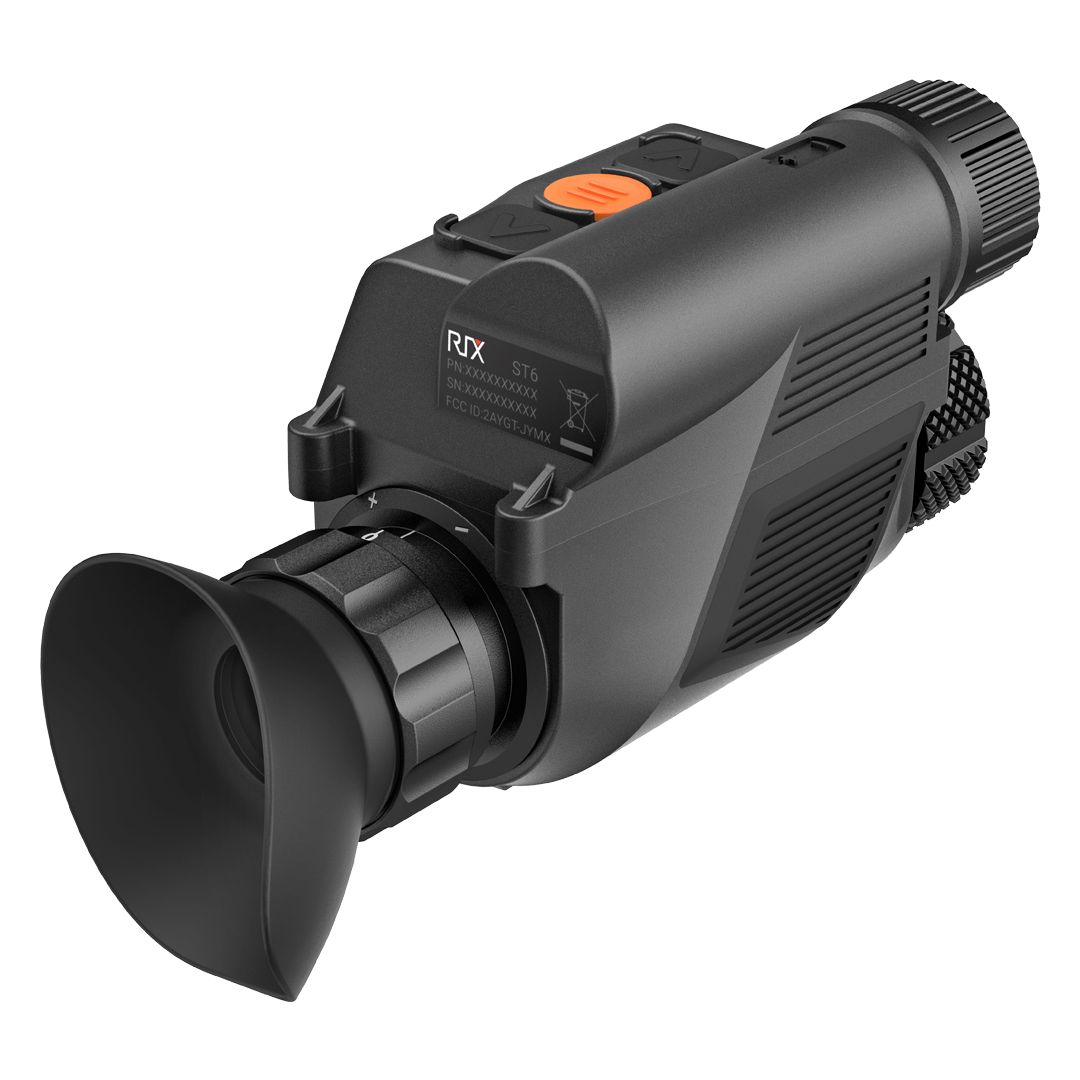

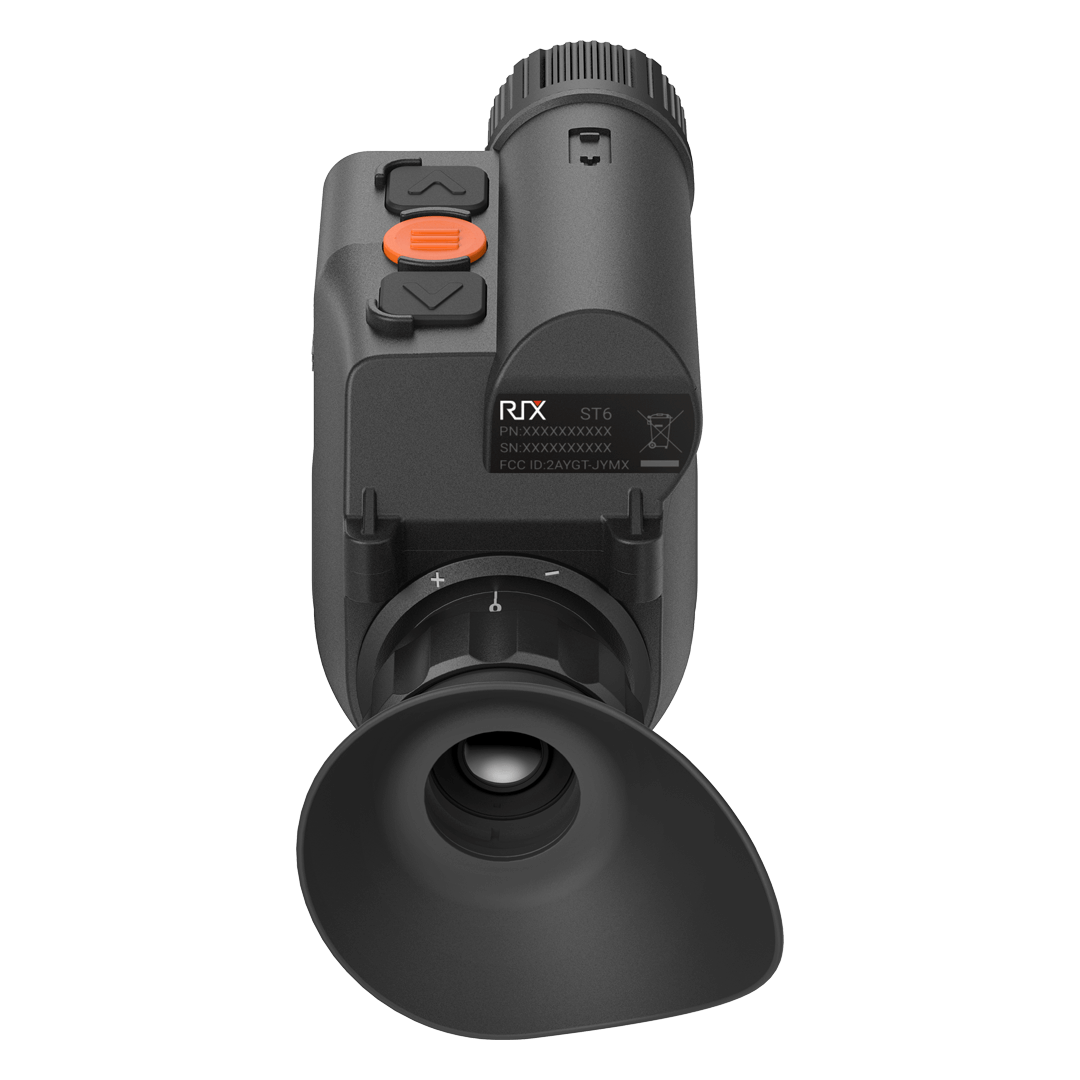

Stride ST6 Thermal Imaging Monocular
Stride ST6 Thermal Imaging Monocular
RIX thermal imaging monocular, the STRIDE ST6, is equipped with a high-performance 640x512 resolution detector, a 50Hz refresh rate, and a thermal resolution of NETD<25Mk, ensuring you always receive clearer, smoother, and more detailed images. Also features a 0.39-inch full-color OLED display with 1024x768 resolution, providing a stunning visual experience while observing with the device. Thanks to this excellent lens structure and powerful detector, the ST6 achieves a detection range of up to 1969YDS.
The ST6 comes with six different image modes, each designed for a specific purpose.
- White Hot, Black Hot, and Red Hot help you easily find targets
- Edge enhances target recognition
- Iron helps increase chances of recognition and identification
- Green Hot reduces discomfort during prolonged use and movement
The ST6 weighs approximately 0.6lb, is palm-sized, and designed for ease-of-use and portability so it can be comfortably used as a handheld or helmet-mounted device. A new energy saving function extends the ST6's battery life up to 10 hours. Now, when you flip the device, it automatically goes into sleep mode.
The STRIDE has built-in photo and video recording capabilities and a large 64GB internal storage. You can connect to external devices via Wi-Fi or a data capable for easy content transfer.
Model | ST6 | |
Sensor Specifications | Type | VOx Uncooled |
Resolution, pixels | 640×512 | |
Pixel Pitch, µm | 12 | |
NETD, mK | <25 | |
Frame Rate, Hz | 50 | |
Optical Specifications | Objective Lens, mm | 26.7 |
Optic Zoom, x | 1 | |
Field of View | 16.3° × 12.3° | |
Digital Zoom, x | 1 to 6 | |
Eye Relief, mm | 20 | |
Diopter Adjustment, D | -5 to +2 | |
Detection Range,m/yd | 1800/1969 | |
Display Specifications | Type | OLED |
Resolution, pixels | 1024x768 | |
Wi-Fi | Wireless Protocol | Wi-Fi |
Frequency, GHz | 2.4 | |
Video Recorder | Video / Photo Resolution, pixels | 640×512 |
Video / Photo Format | .mp4 / .jpg | |
Built-in Memory, GB | 64 | |
Physical Specifications | Degree of Protection, IP code | IP67 |
Operating Temperature Range, °F | -4 to +122 | |
Dimensions, inch | 4.5x2.8x1.9 | |
Weight, lb | <0.6 (without battery) | |
Connections and Compatibilities | Battery Type | 18650 |
Operating Time on Battery Pack (at t=72°F), h | Up to 10 | |
External Power Supply | 5V (Type-C USB) |
