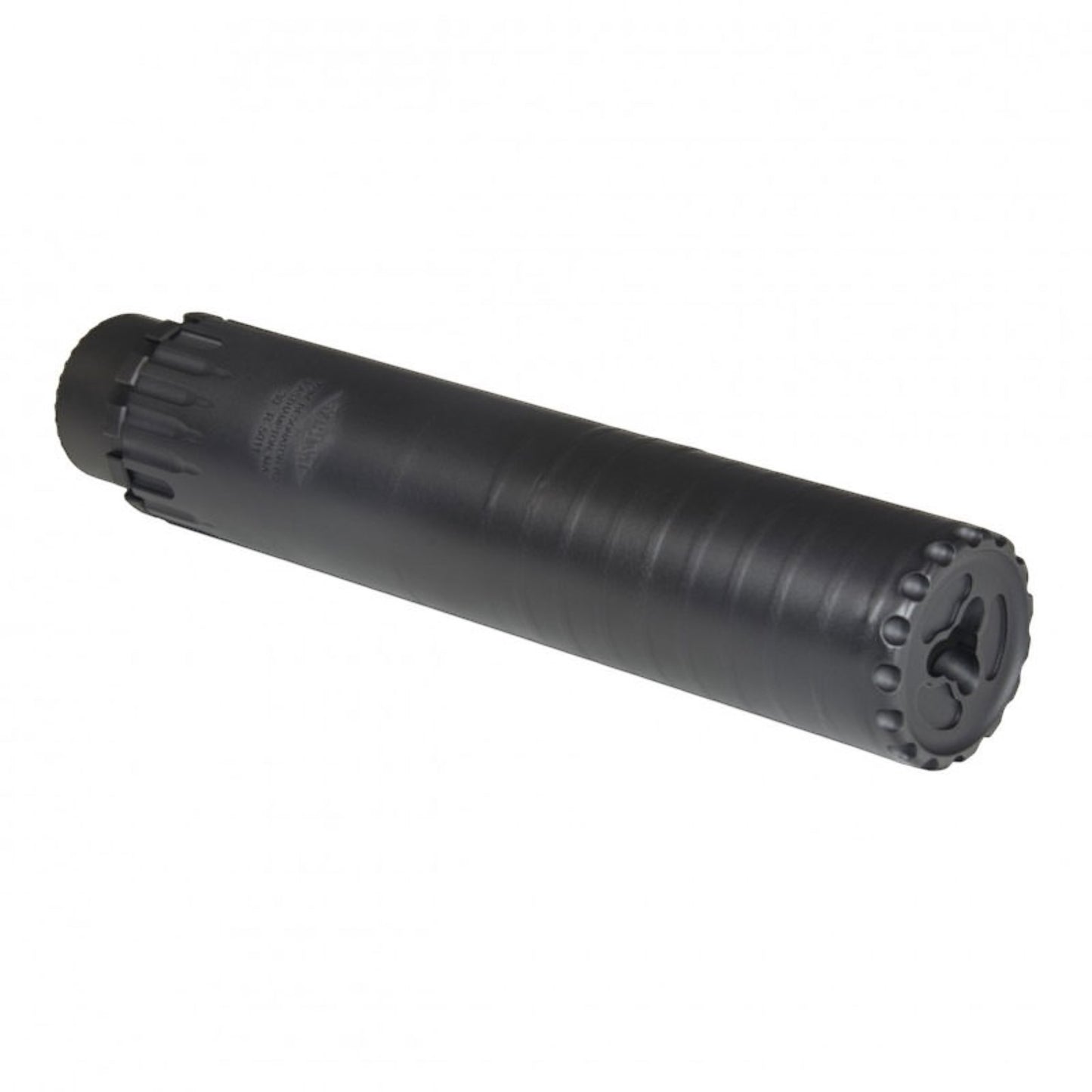

Resonator R2

YHM’s .30 caliber sound suppressor, the Resonator® R2, was created to provide the shooting enthusiast a quiet, lightweight and cost effective suppressor. The notched rim and tri-port muzzle on the end cap make it stand out among the crowd. Capable of being used on multiple calibers and host weapons, the Resonator® R2 can be used on rifle calibers ranging from .17 HMR through 300 RUM making it a great choice for all shooters. Like the Turbo® T2, the Resonator® R2 uses a tubeless design which consists of heat treated 17-4 stainless steel and a heat treated 718 Inconel blast baffle which allows the suppressor to be full auto rated and designed for rigorous use. Includes YHM-4302 Q.D.

Sound Pressure levels are as follows:

• • 20″ Remington 700 shooting .308 Winchester 147 grain measured 135Db
  • 16″ 6.8mm AR-15 shooting 110 grain measured 132.5Db
  • 14.5″ 5.56mm AR-15 shooting 55 grain measured 132Db

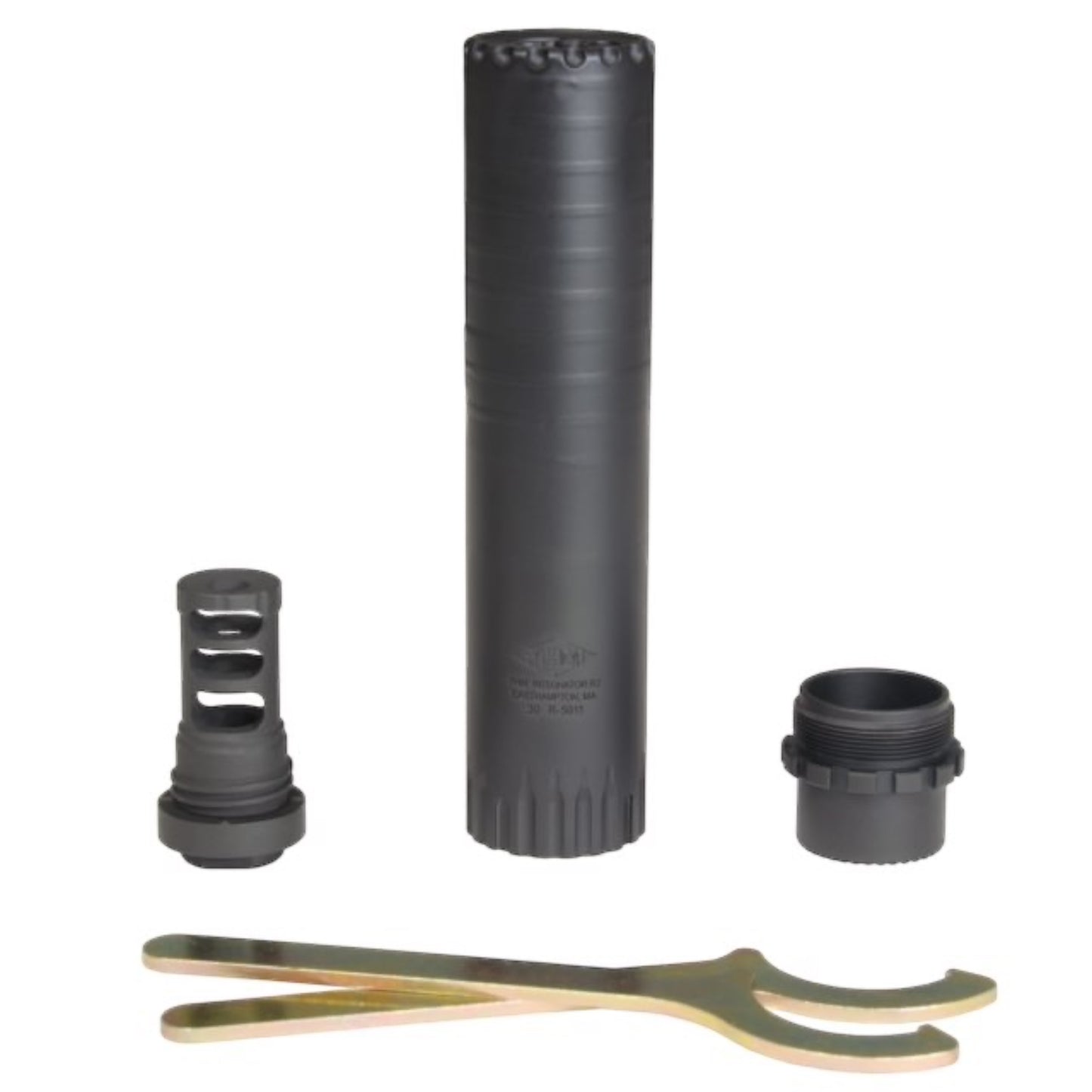

The Resonator R2® ships with the Phantom® Q.D. Adapter, 2 suppressor wrenches, and a YHM-4302 mount. It will fit all YHM-4302, YHM-3302 and YHM-3102/YHM-5M2 mounts.

Minimum Barrel Lengths:

7.62×51 / .308 Winchester: 10.5″ minimum barrel length
5.56 NATO, 6.8SPC, 7.62×39: 10.5″ minimum barrel length
.300 Win Mag / 300 RUM: 20″ minimum barrel length
300 Blackout: 8″ minimum barrel length

CALIBER

• 30 Cal.

OVERALL LENGTH

• 7.825"

DIAMETER

• 1.562"

WEIGHT

• 16 Oz.

SUPPRESSION LEVEL

• 135 dB on 20" .308 Win

MATERIAL

• 17-4 Ph SS and Heat Treated Inconel 718

FINISH

• Matte Black Cerakote

METHOD OF ATTACHMENT

• YHM-4302 Q.D. Flash Hider or Muzzle Brake

RATING

• 17HMR through .300 RUM/.300 WIN MAG

FULL AUTO RATED

• Yes
