Rearden

FHD Gunmetal PVD

FHD Gunmetal PVD

Regular price $85.50 USD
Regular price Sale price $85.50 USD
Sale Sold out
Shipping calculated at checkout.
Thread



  • 17-4 PH
  • Atlas and Atlas XL Compatible
  • Plan B Compatible

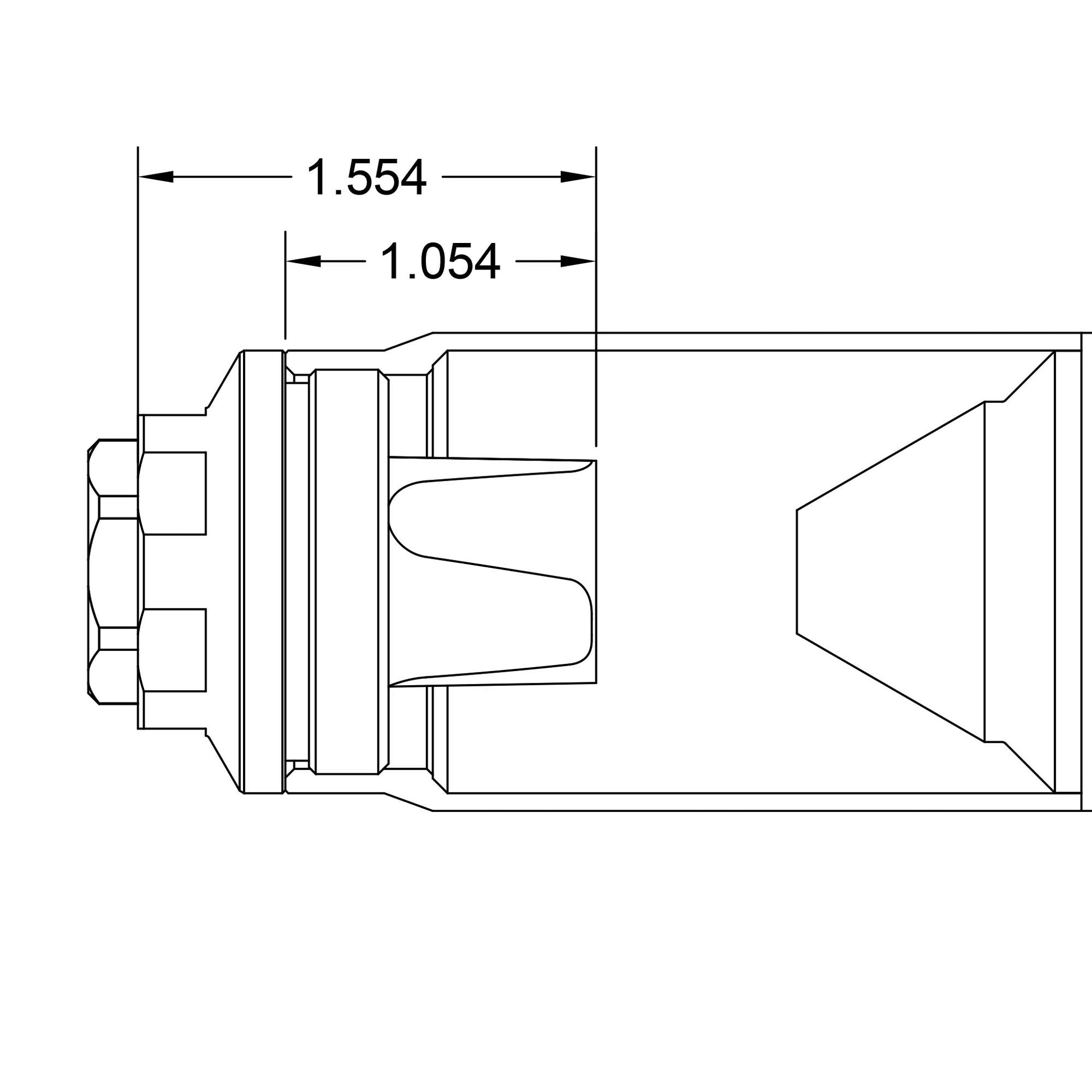

  • Atlas Adapter Overrun Approximately 1.050″
  • Atlas XL Adapter No Overrun
  • 1/2-28 Threads .375 Bore
  • 5/8-24 Threads .375 Bore
  • Gunmetal PVD
  • Shims Not Included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
  • Colors vary per part, specific coloring in finish is not guaranteed



These fit the plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel.  Use on a Q can voids your warranty, be warned.

Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly.

View full details
